Foam encapsulation is an increasingly common practice in battery pack design, offering key advantages in mechanical robustness, thermal isolation, and safety. It involves injecting polyurethane (PU), silicone, or epoxy-based foams into the voids between battery cells or around submodules. Once cured, these foams form a semi-rigid or fully rigid matrix, supporting both functional performance and safety compliance in electric vehicle (EV) and energy storage applications.
Why Use Foam in Battery Packs?
1. Mechanical Damping and Structural Rigidity
Foam prevents micro-movement of cells under vibration and shock by distributing loads across a larger surface area and protects wire bonds and other fragile connections. This is particularly beneficial in EVs operating in real-world road conditions, where battery modules face dynamic stress over long duty cycles. Many top-tier battery pack manufacturers use foam to reduce internal wear and mechanical fatigue.
2. Crash Energy Absorption
Polymeric foams, especially in the 150–300 kg/m³ density range, provide compressible energy-absorbing layers within battery modules. They can buffer the deformation of external enclosures or intrusion into the cell zone, helping reduce peak impact forces during crashes.
3. Improved Heat Transfer Compared to Air
While most foams are not highly conductive by nature, foams are still better than air in conducting heat. Air has a thermal conductivity of ~0.026 W/m·K, whereas foam can provide a thermal coductivity anywhere between 0.1 – 1.5 W/m·K. While these values do not match that of thermal interface materials (TIMs), they are useful in minimizing hot spots and aiding radial heat transfer, particularly in cylindrical cell arrays.
4. Propagation Delay and Fire Resistance
Foams can physically separate cells, acting as thermal and flame barriers. Many industrial-grade foams used in battery applications are UL 94 V-0 or V-1 rated, offering flame retardance in the event of thermal runaway. Some variants also expand under heat (intumescent behavior), forming insulating layers to help slow propagation.
Design Considerations
Design Factor Engineering Consideration
Foam Expansion Ratio Requires precise volume control to avoid deformation
Curing Time Impacts takt time in production
Thermal Insulation Can hinder cooling if used excessively
Servicing Limits cell access for diagnostics/repair
Adhesion Compatibility Must not degrade cell jackets, busbars, or insulators
Applications Across the Industry
At major battery expos and technical conferences globally, several manufacturers have showcased foam-based battery submodules with optimized cell spacing, thermal barriers, and impact-absorbing encapsulation. These packs demonstrate:
- Uniform support for cylindrical cells
- Lightweight construction
- Enhanced mechanical integrity for structural integration (CTP and CTC designs)
Such designs are increasingly being explored for e-mobility, heavy-duty EVs, and stationary storage systems, where vibration isolation and propagation delay are critical.

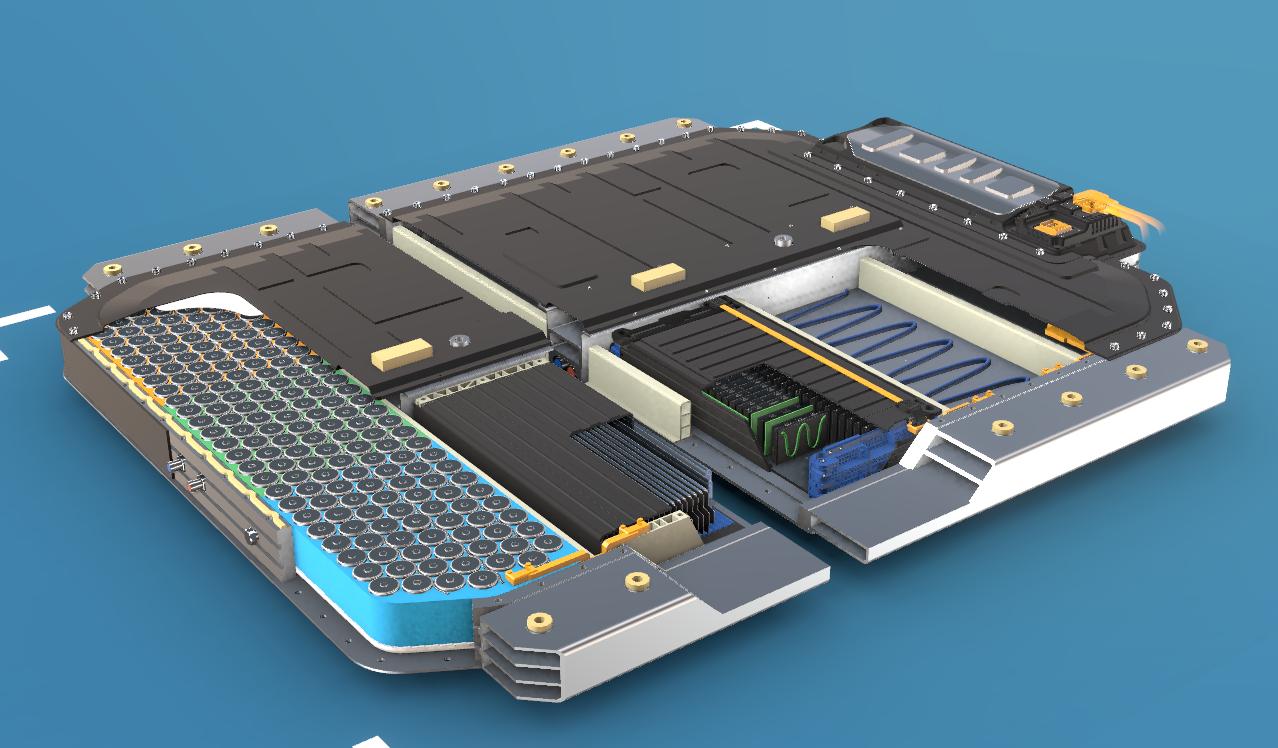

BASF display Battery pack showcasing the use of various plastics, polymers, composites including encapsulation foams of different type
XLEX Implementation Philosophy
At XLEX Batteries Pvt Ltd, we utilize foam encapsulation selectively based on application requirements. Foam encapsulation is part of our proprietory battery pack design.
Our design validation includes mechanical simulations and thermal propagation tests to evaluate foam’s performance in representative use cases.
